The visual approach slope indicator (VASI) system is a crucial visual aid for pilots during the approach and landing phases at many airports. It provides clear descent path guidance to ensure safe and accurate arrivals on the runway. Understanding how VASI works and how to interpret its signals can greatly enhance landing safety and pilot situational awareness.
Table of Contents
What Is a Visual Approach Slope Indicator?
A visual approach slope indicator is a lighting system installed beside the runway threshold at many airports. It consists of strategically arranged lights that give pilots immediate visual information about their glide path angle while approaching a runway. This guidance is especially vital when instrument landing systems are unavailable or when pilots prefer visual confirmation of their approach angle.
How Does the Visual Approach Slope Indicator Work?

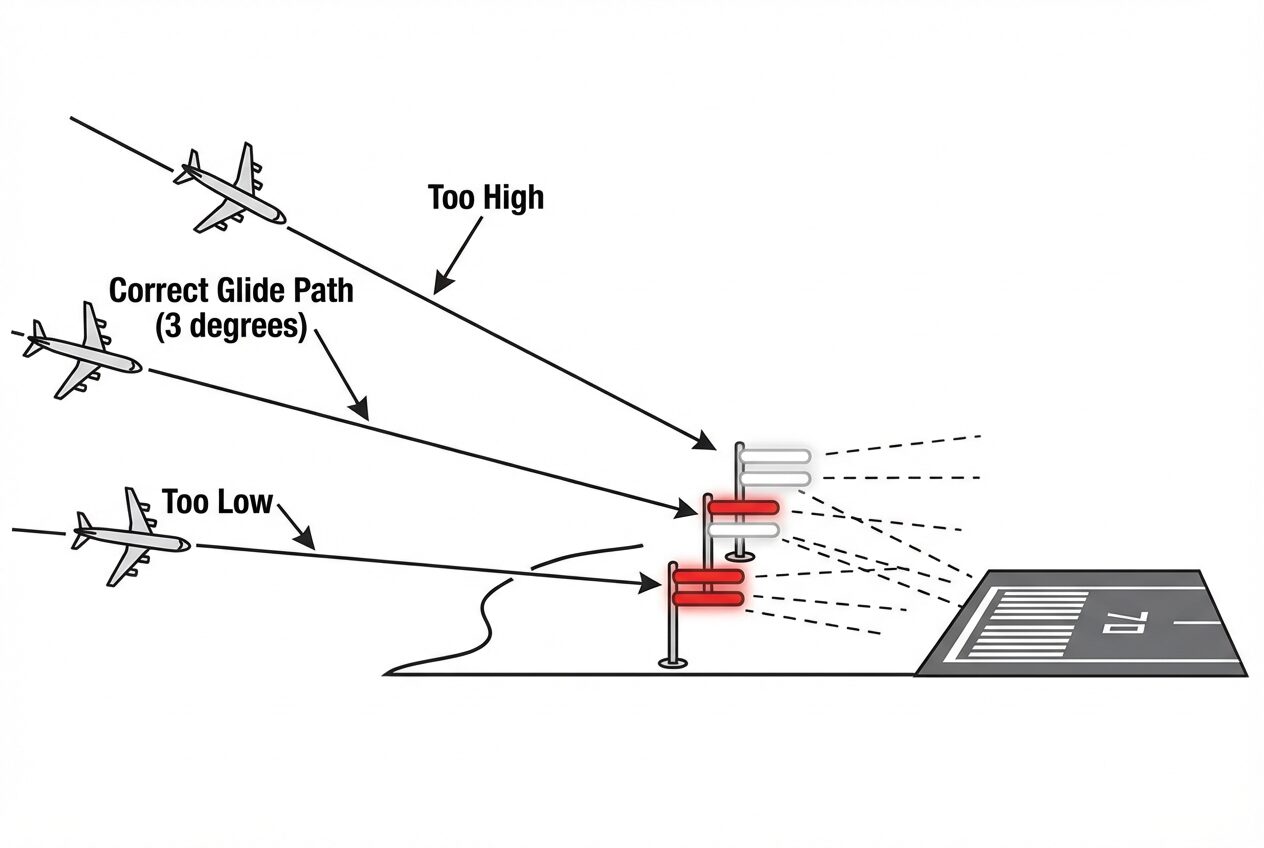

The VASI uses lights designed to appear as different colors depending on the pilot’s angle of approach. Typically, the system includes two sets of lights placed about 7 meters (23 feet) from the runway threshold. Each light can appear white or red based on the viewing angle, creating an intuitive color coded signal
- Correct glide path: The first set of lights appears white and the second set red, indicating the pilot is on the correct descent angle to safely reach the runway.
- Too high: Both sets of lights appear white, signaling that the aircraft is above the ideal glide path and needs to descend more quickly.
- Too low: Both sets appear red, warning the pilot that the approach is too low and an immediate correction to climb is required to avoid obstacles or terrain.
This clear visual coding helps pilots adjust their descent angle precisely and safely, augmenting their instrument data or purely visual flight situation.
Visibility and Installation
VASI lights are designed to be highly visible to pilots during final approach. They can be seen from approximately 8 kilometers (5 miles) during daylight hours, extending visibility up to 32 kilometers (20 miles) or more at night. The enhanced visibility at night makes VASI an essential aid for pilots conducting nighttime landings.
Installation typically places the VASI system just beside the runway threshold, allowing the pilot to detect the color changes as they approach the runway. This strategic location ensures the angle of the lights corresponds directly to the ideal glide slope, a typical 3 degree descent path for most runways.
Types of Visual Approach Slope Indicators
Besides the basic VASI system described above, airports may also have other types of visual glide slope indicators such as Precision Approach Path Indicators (PAPI), which use a single row of four lights for more detailed glide path information. However, basic VASI remains common and reliable at many facilities worldwide.
Importance in Pilot Training and Safety
VASI systems play an important role in pilot training and operational safety. They teach new pilots how to visually interpret descent paths and respond to visual cues during landing. In practical terms, VASI reduces runway incidents caused by approach errors such as being too low, potentially hitting obstacles or short landing, or too high, which could lead to long landings or runway overruns.
Conclusion
Visual approach slope indicators are a vital element of runway safety and landing precision, providing pilots with immediate, easy to interpret visual glide path information. Understanding their color coded signals helps ensure safe, smooth approaches in varying visibility conditions and complements instrument landing techniques. Whether at a small regional airfield or a busy international airport, VASI systems continue to be a simple yet highly effective aid for pilots worldwide.
